VDO.Ninja Stream Deck Plugin

A native Elgato Stream Deck plugin for controlling VDO.Ninja pages through the existing VDO.Ninja &api remote-control system.

The goal is simple: open a VDO.Ninja director, guest, mixer, or camera page with a private API key, then use Stream Deck keys and dials for production controls such as mic/camera toggles, guest targeting, scene membership, mixer layouts, slots, PTZ, volume, bitrate, and custom API commands.

Status: beta/development. The plugin is usable for testing, but it has not been marketplace-released yet.

New to Stream Deck or VDO.Ninja? Start with the plain-language setup guide.

Preview

The key layout is an illustrative production profile, but the key colours and badges are the ones the plugin actually renders: a green field with a check for on or ready, dark red with a cross for off or unavailable, grey for inactive, and amber for a custom command. The property-inspector image reflects the current interface; labels may vary with the selected action.

Stream Deck key preview

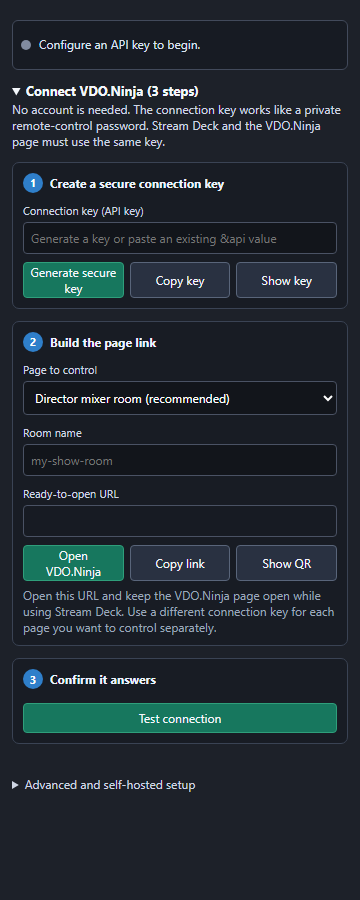

First-run VDO.Ninja connection setup in the Stream Deck property inspector

Highlights

Native Stream Deck SDK plugin; no Companion dependency required.
Works with the existing VDO.Ninja API relay using &api=YOUR_PRIVATE_KEY.
Supports both key actions and Stream Deck + dial/encoder actions.
Includes setup helpers for director, push, view, scene/output, and custom VDO.Ninja URLs.
Uses live VDO.Ninja state from getDetails, partial details updates, and guest list ordering.
Tracks API transport health, including messages per second and WebSocket backlog.
Rate-limits or skips high-rate no-wait incremental controls when the API socket is overloaded.
Preserves established VDO.Ninja API shapes, with legacy-safe scene and mute-all behavior.

Quick Setup

For a slower, screenshot-free walkthrough with troubleshooting, see Set Up VDO.Ninja on Stream Deck.

In Stream Deck, drag Connection Status onto any key.
In the panel on the right, click Generate secure key, enter your VDO.Ninja room name, then click Open VDO.Ninja.
Keep that browser tab open and click Test connection. A green status means it is ready.
Drag the controls you want onto other keys or dials. For guest controls, guest position means the G1, G2, and G3 order shown by the VDO.Ninja director; it is not a mixer destination slot.

The setup panel collapses after configuration so each action’s settings stay easy to reach. VDO.Ninja requires no account. Treat the generated connection key like a password, and use a different key for every page you want to control separately.

Supported Actions

Action	Controls	Feedback
Connection Status	API key, API host, setup links, QR code, connection test	Connected/no-page/timeout/error state
Local Control	Mic, camera, speaker, record, screen share, hand, force keyframe, reload, hangup	On/off state where VDO.Ninja reports it
Select Guest	Fixed guest, next, previous, first held, clear selected guest	Selected target state/title
Guest Command	Guest mic, camera, speaker, display, volume, group, transfer, activate held guest, hangup, solo modes, chat overlays, refresh/recover/keyframe	Target-aware titles and known guest states
Guest Scene	Toggle or force guest into any scene ID/name	Scene membership feedback
Mixer Control	Layout selection, assign guest to mixer slot, unset slot, legacy-safe mute/unmute all guests, guarded transfer-all	Mixer key states, slot feedback, all-muted feedback
PTZ Key	Local zoom/pan/tilt/focus/exposure; guest zoom/pan/tilt/focus/autofocus	Target-aware PTZ titles
PTZ Dial	Stream Deck + relative PTZ control with inversion, acceleration, rate limiting, and press actions	Current control/status title
Value Dial	Local volume, panning, bitrate, buffer delay, guest volume	Clamped value feedback
Custom Command	Any VDO.Ninja `{ action, target, value, value2 }` payload	OK/alert result feedback

VDO.Ninja Version Compatibility

The command registry was checked directly against the last pre-v30.1 source (v29.4) and the current v30.2 source. Existing API names and value semantics are not redefined.

Local, guest, mixer layout/slot, PTZ, value-dial, and custom controls keep their established command shapes.
Guest Scene uses the legacy addScene / addScene2–addScene8 paths. Named-scene force-on/off uses live scene state plus the old toggle command, so it does not require the newer value2 scene extension.
Mute all guests fans out the long-standing targeted mic command and excludes directors and screen-share pseudo-guests; it does not require the newer muteAllGuests wrapper.
Activate Guest is the one current-only control. It requires VDO.Ninja v30.2+ because older pages have no native &api queue-activation handler. An older page rejects it and the plugin shows an alert without changing any legacy behavior.

Very old builds can only support commands that existed in those builds; the plugin does not emulate missing browser features or PTZ handlers.

Common Workflows

Director room control

Use a director URL with a private API key:

https://vdo.ninja/?director=ROOM&api=YOUR_PRIVATE_KEY

Then add Stream Deck actions for guest mic/camera control, scene toggles, transfer, and mixer actions.

Mixer and slot control

For slot workflows, use the mixer app or enable slot mode:

https://vdo.ninja/mixer?director=ROOM&api=YOUR_PRIVATE_KEY
https://vdo.ninja/?director=ROOM&api=YOUR_PRIVATE_KEY&slotmode=1

layout=0 means auto layout. Mixer slot assignment uses user-facing destination slot numbers: 1 is mixer slot 1, and 0 unsets the guest’s slot assignment.

PTZ control

Local PTZ needs the controlled camera page opened with &ptz and the browser PTZ permission approved:

https://vdo.ninja/?push=CAMERA_ID&api=YOUR_PRIVATE_KEY&webcam&autostart&ptz

Guest PTZ is sent from a director or mixer page, but the guest publisher must be loaded with &ptz and grant browser camera-control permission.

Requirements

Stream Deck desktop app 6.8 or newer.
Stream Deck hardware, Stream Deck +, or Stream Deck Mobile.
A VDO.Ninja page opened with a private &api=KEY value.
Node 20 runtime bundled by Stream Deck for the plugin runtime.
Node.js 20+ installed locally only if you are building from source.

Install From Source

cd plugin
npm install
npm run build
npx @elgato/cli@1.7.4 link ninja.vdo.streamdeck.sdPlugin
npx @elgato/cli@1.7.4 restart ninja.vdo.streamdeck

The generated plugin bundle lives at:

plugin/ninja.vdo.streamdeck.sdPlugin/

Testing

No physical Stream Deck is needed for the basic checks:

cd plugin
npm test
npm run check
npm run build
npx @elgato/cli@1.7.4 validate ninja.vdo.streamdeck.sdPlugin --no-update-check
npx @elgato/cli@1.7.4 pack ninja.vdo.streamdeck.sdPlugin --dry-run -f --no-update-check

pack refuses to run when a .streamDeckPlugin file from an earlier build is already there, so -f keeps the dry run repeatable.

Current automated coverage includes command payload generation, settings normalization, custom value parsing, session-state handling, selected guest targeting, manifest image wiring, and VDO API transport behavior.

Interactive testing still requires the Stream Deck desktop app with hardware or Stream Deck Mobile.

Every push to main runs the same checks on Node.js 20 and uploads an installable .streamDeckPlugin build. Tags beginning with v also publish that package to the matching GitHub release.

Project Layout

plugin/
  manifest.json                 Stream Deck manifest
  src/                          TypeScript plugin source
  ui/action-settings.html       Property inspector UI
  imgs/                         Generated action, key, encoder, and marketplace icons
  scripts/icon-set.mjs          Icon palette and shape specs (the source of truth)
  scripts/generate-icons.mjs    Renders the specs to SVG and anti-aliased PNG
  scripts/copy-assets.mjs       Assembles the .sdPlugin bundle
docs/
  README.md                     Index of the documentation set
  assets/                       README preview images
  *.md                          Design notes, API maps, and implementation audits

Icons are generated, not hand-edited. Change scripts/icon-set.mjs and run npm run assets; a test fails the build if the manifest and the generated files fall out of sync.

Notes For VDO.Ninja Users

The plugin does not replace VDO.Ninja UI state; it extends the existing API paths.
Keep API keys private. Anyone with the key can control the matching VDO.Ninja page.
Commands that require value2, such as absolute PTZ or all-stream buffer updates, use the WebSocket payload path so secondary values are preserved.
See the compatibility audit for the source comparison and fallback details.
Discrete awaited commands are not skipped. Only high-rate no-wait incremental controls, such as relative PTZ and value dials, may be skipped if the API socket is overloaded.
